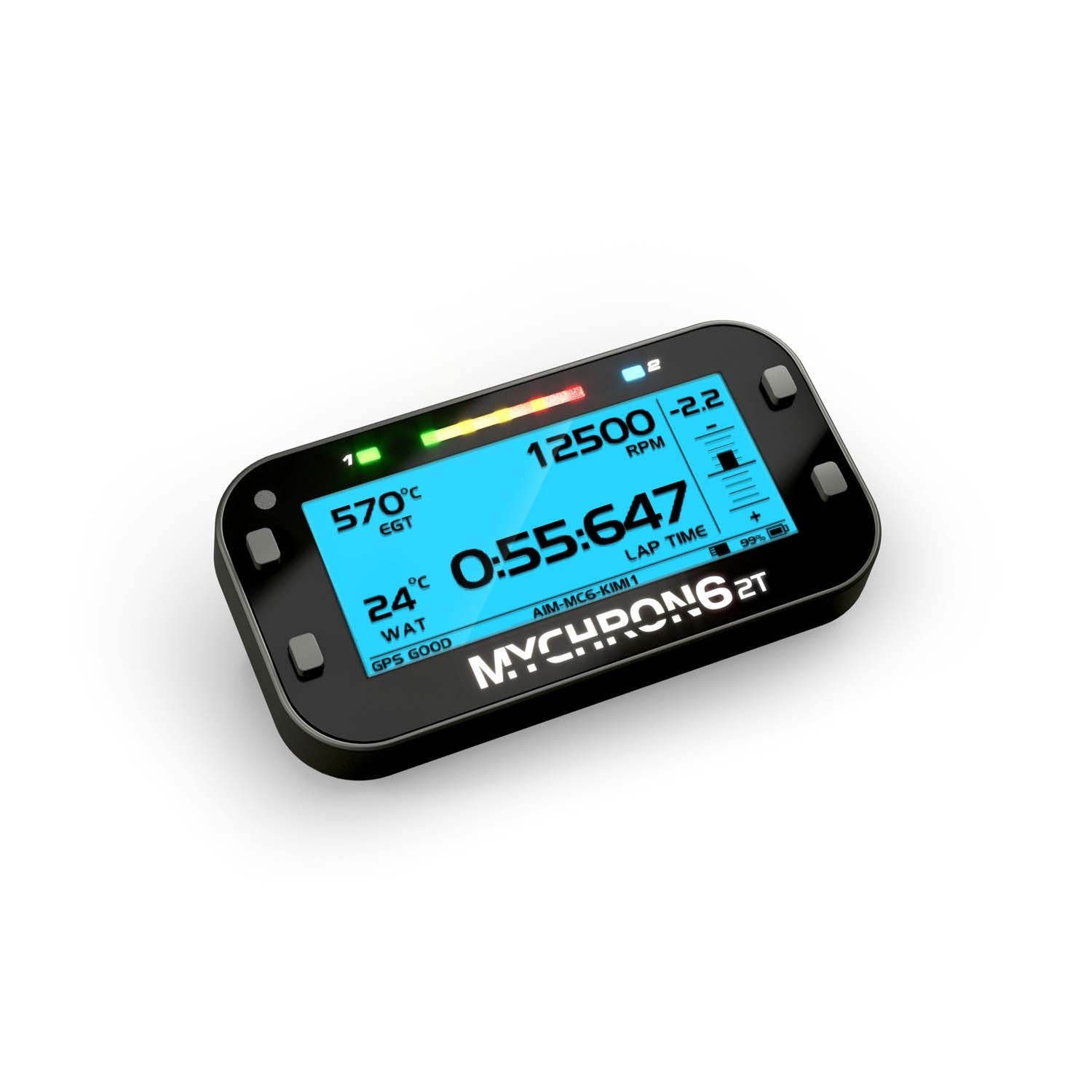

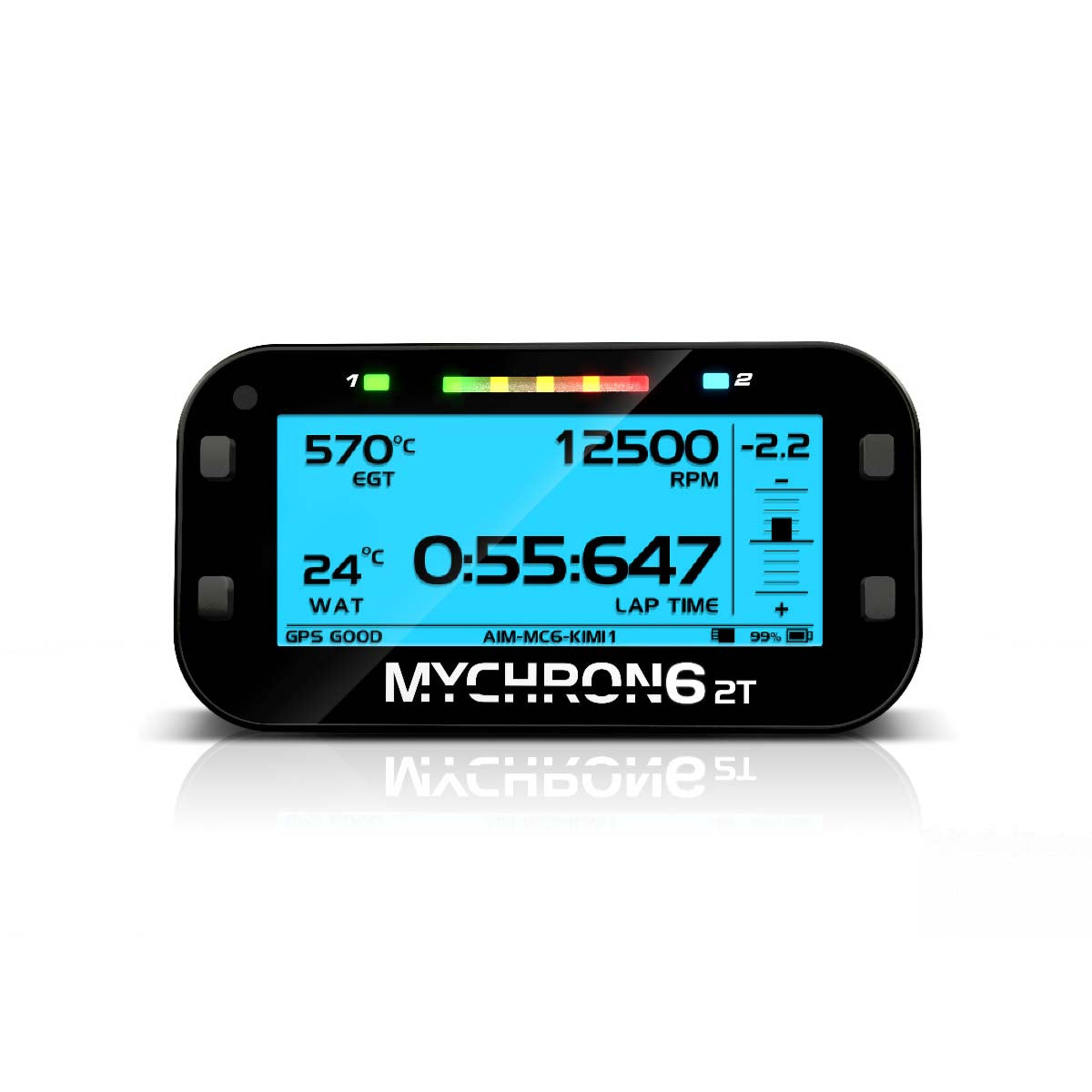

AIM Mychron 6 2T Karting Dash System

Display

• Resolution: 320 x 136 pixels

• Type: High-contrast backlit LCD

• LEDs: 5 RGB shift lights, 2 customizable alarm LEDs

GPS & Data Acquisition

• GPS Sampling Rate: 25Hz

• Satellite Systems: GPS, GLONASS, Galileo, BeiDou

• Track Mapping: Automatic lap and sector detection

Inertial Platform

• IMU: 6-axis (Accelerometer + Gyroscope)

• Captures: Lateral G, longitudinal G, pitch, roll, yaw

Connectivity

• Wireless: Wi-Fi and Bluetooth

• Data Download: Wireless or USB

• Heart Rate Monitoring: Bluetooth-compatible

Inputs & Sensors

• Channels: RPM + 4 temperature sensor inputs

• Expansion: Supports MyChron Expansion, Lambda, Brake/Throttle sensors

• Compatible Accessories: SmartyCam 3 series, GPS Module 2

Software

• Analysis Suite: AiM RaceStudio 3

• Firmware Updates: Wireless or USB

Power Supply

• Battery: Rechargeable lithium-ion

• Battery Life: Up to 20 hours (typical use)

• Charging: Via USB cable

Physical Specs

• Mounting: Standard steering wheel clamp

• Enclosure: Rugged and track-proven casing

• Weight: Lightweight for steering wheel compatibility

The AiM MyChron6 is the ultimate karting dash logger, delivering professional-grade data acquisition in a compact, track-ready package. Equipped with a high-resolution 320x136 pixel display and a 25Hz GPS module that supports GPS, GLONASS, Galileo, and BeiDou satellite systems, the MyChron6 offers precise lap timing and track mapping. Its integrated 6-axis inertial measurement unit (IMU) captures detailed acceleration and steering data, providing insights into driving dynamics. The device features five customizable RGB shift lights and two configurable alarm LEDs, allowing drivers to tailor visual cues for optimal performance. With built-in Wi-Fi and Bluetooth connectivity, data transfer and heart rate monitoring are seamless. The MyChron6 supports various sensors, including temperature, pressure, and throttle/brake position sensors, and is compatible with AiM's RaceStudio 3 software for in-depth data analysis. Its rechargeable lithium battery offers up to 20 hours of operation, ensuring reliability during extended sessions. Designed for versatility, the MyChron6 is compatible with a range of AiM accessories, such as the SmartyCam 3 series and MyChron Expansion modules, making it an indispensable tool for karting enthusiasts seeking to enhance their performance.

• ✅ High-Resolution Display – Crisp 320x136 pixel screen for clear data visibility on track

• 📡 25Hz GPS with Multi-Satellite Support – GPS, GLONASS, Galileo & BeiDou for precise lap timing and mapping

• 🧭 Built-in 6-Axis IMU – Captures acceleration, braking, and cornering forces in real-time

• 🎯 Customizable Shift & Alarm LEDs – 5 RGB shift lights and 2 alarms for at-a-glance performance feedback

• 🔌 Wi-Fi & Bluetooth Connectivity – Fast data downloads, firmware updates, and heart rate sensor support

• 🧪 Sensor Compatibility – Supports temperature, pressure, throttle/brake, and expansion modules

• 🔋 Rechargeable Battery – Up to 20 hours of operation on a single charge

• 🎥 SmartyCam Compatible – Sync video and data for detailed driver analysis

• 🛠️ RaceStudio 3 Integration – Full support for AiM’s powerful data analysis software
