Planted Seat Hardware Kit

• 8 button head cap screws, M8 x 1.25 thread, 20mm long, with washers and nyloc nuts
• Bottom-mount seats: seat to sliders and sliders to bracket, or seat direct to bracket
• Side-mount seats: side mounts to sliders and sliders to bracket, or side mounts direct to bracket
• Direct mounting without sliders will require some drilling
• Side-mount seats may also need the Planted Side Mount Hardware Kit

Disclaimers:

• Seats and mounting components come in many different shapes and sizes. It is up to the end user to confirm fitment with their seat, sliders and brackets before ordering.
• Professional installation is recommended.

Seat brackets and sliders are only as secure as the hardware holding them together. The Planted Seat Hardware Kit supplies matched, quality fasteners so you're not raiding the hardware store or reusing tired factory bolts.

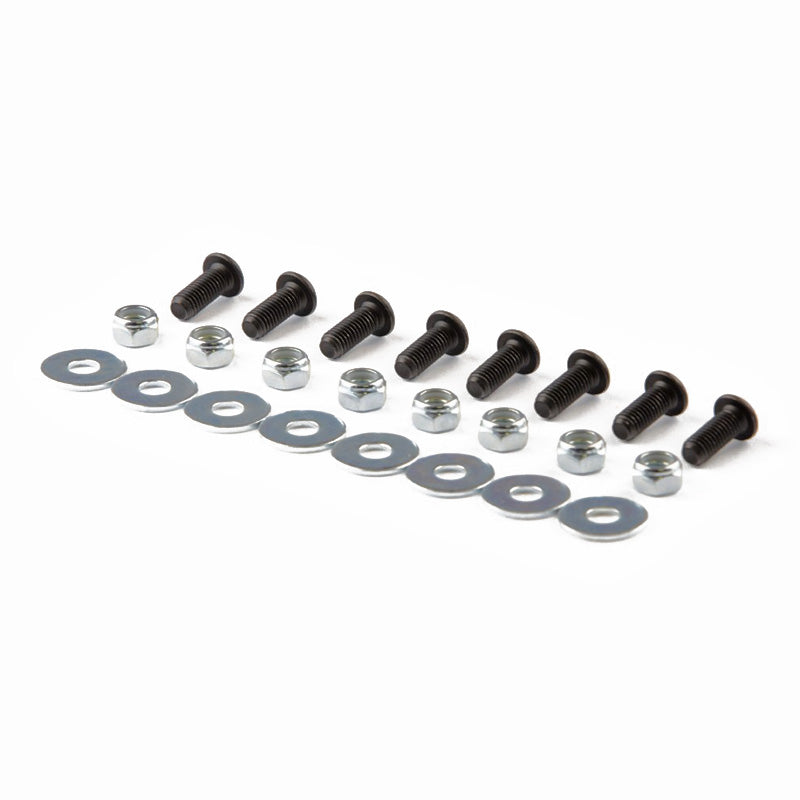

The kit includes 8 button head cap screws (M8 x 1.25, 20mm long), plus washers and nyloc nuts. That covers a bottom-mount seat installed seat-to-sliders and sliders-to-bracket, or a seat bolted directly to a Planted bracket. It also covers side-mount seats, with Planted side mounts bolted to sliders and sliders to the bracket, or side mounts bolted directly to the bracket.

If you're stacking spacers or running thicker sliders, check that every bolt still has full thread engagement through its nyloc nut, and step up in length where it doesn't. Torque everything once the seat position is set, then re-check it after the first session or drive.

Direct mounting without sliders will require some drilling. Most side-mount seats don't include the hardware to attach the side mounts, so you may also need the Planted Side Mount Hardware Kit.
